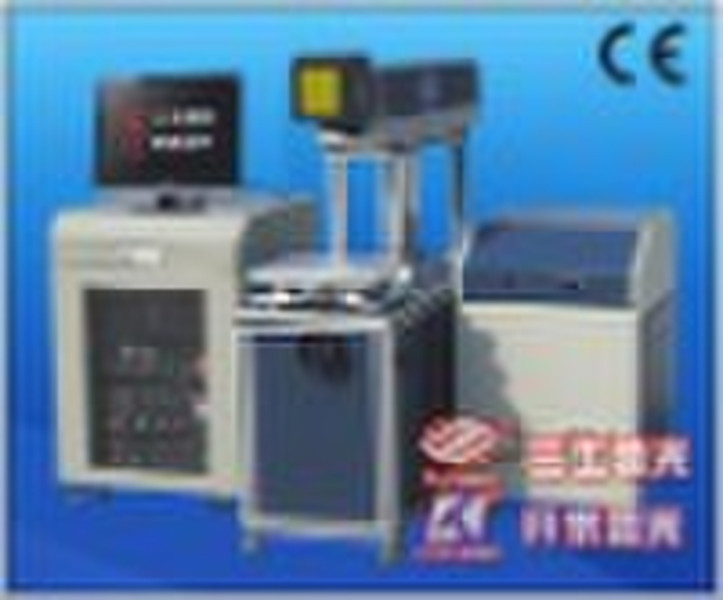

YAG laser Marking Machine

YAG lasermarking machine SYD-60 Brief Introduction:1. YAG side-pumped laser possesses the most sophisticated technology, the earliest one in laser application.2. Its the cheapest laser marking machine.3. Can quickly mark letter, figure, graphics or auto-coding, serial No., batch No., barcode, 2 -D code, etc. on metal or nonmetal surface (plastic,silicon or porcelain,etc.) which are precise, permanent, non-polluting and environment-friendly. 4. High-speed YAG laser marking machine is mainly equipped with lamp-pumped laser tube, continuous YAG Laser electricity source, A/O Q switch, driver, high-speed X-Y axes galvanometer scanning mirror, water cooling unit., movable workable, computer control system and marking software.Equipment Features:1. With UK imported porcelain syntonic cavity which is stable, dew free, efficient in conversion and no plating sheet peel off, laser life is long.2. Full sealed and maintenance-free laser optic system which key components all imported from USA or UK, which install-and-play without adjustment.3. Can be used under wide range of environment temperature, 24-hour continuous working is reliable. Be applicable to production line for flying marking.4. Software: with red preview, mirror marking, graphical alignment, hierarchical set parameters functions.5. Rotary worktable system is optional, thus, accomplish marking on cambered surface.6. Under WINDOWS interface, compatible with files outputted from software such as CORELDRAW, AUTOCAD, PHOTOSHOP etc. Support PLT, AI, DXF, BMP and other documents, directly using SHX, TTF font.Application Industry:Materials: all metals, plastic (including all sorts of engineering plastics), rubber, plating film, stone, silicon etc.Fields: Electronics, Communication, Electric equipment, Computer, Glasses, Clock, Ornaments, Automobile parts, Metal products, Presents, Brand etc.Technical parameters:Laser wavelength: 1064nm Laser power: 60W Working area: 100X100mm,160X160mm,200X 200mm(optional) Marking depth: ≤0.5mm Marking speed: ≤7000mm/s Min. character: 0.3mm Repeated precision: ±0.003mm Average power consumption: ≤3kw Power supply : 380V/50HZ 20A G.W.:300 KGS Dimension: Optic system1300×410×1220mmControl system: 560×610×830mmCooling system: 490×610×790mm
