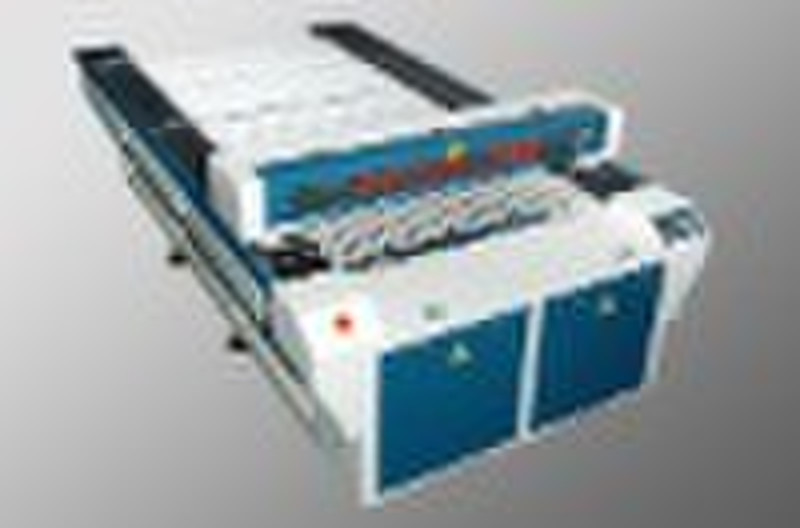

Large Area CO2 laser cutter

Large AreaCO2laser cutter Brief Introduction:KT series CO2 laser cutting machine can meet requirements such as large area, high-precision, high efficiency, thick board. (nonmetal material, acryl, wooden board, ect. ), and DieBoard, applied several technology patents in China.Can be used to cut thin steel sheet as well .Equipment Features:1. Adopts large power laser tube: glass tube (100w, 130w) or RF metal laser tube( 100W, 200W, 300W, 400W )2. Cutting thickness: Acryl30mm , wooden board 20mm, steel sheet 2mm,3. Full sealed laser optic system, high efficient beam transfer, convenient for maintenance.4. Adopts the unique technology like screw rotated driving and double ballscrew transmitting which are first developed by us in China. 5. Equipped with automatic focusing system: automatically adjust focal length according to the thickness of the work pieces, ensures the best cutting effect .6. Strong and stable mechanical structure which makes moving speed, stability, precision greatly enhanced, the max. moving speed can reach 15m/min.7. With material auxiliary feeding and collecting system, its easy for delivery or reclaim.8. Multi-protection function ensures the movement security and personnel safety.9. Adopts Panasonic Servo motor System: little inertia & good dynamic performance.10. Industrial water cooling system ensures good performance and stability.11. Windows interface that supports DXF, PLT, AI, BMP file formats. Application industry Particularly applicable to non-metallic materials such as acrylic, wood, plastic ect., applied in large area, high-precision and deep cutting, toys puzzles cutting, DieBoard etc. Technical parameters:Laser power: 100 W/200W/300W/400WCutting area:1270 mm × 2520mmMax. object Size:1300mm × ∞ × 40mmCutting thickness:Acryl30mm , wooden board 20mm, steel sheet <2mmMaximum speed:15m / minLocation precision:±0.05mmRepeated precision:±0.02mmFocusing lens:3' (optional 2'. 2.5'. 4' )Cooling System:water cooling (1.5P)Power supply:220 V / 50Hz / (35A, 40A)Average power consumption:≤4KWOverall dimension:3560×1924×1250 mm
